David Tran Point of Sale Published: 12/16/20 Hits: 418

Connecting a Vantiv payment terminal allows you to offer a fluid payment flow to your customers and ease the work of your cashiers.

Note

Please note MercuryPay only operates with US and Canadian banks, making this procedure only suitable for North American businesses.

Configuration

Configure the Payment Method

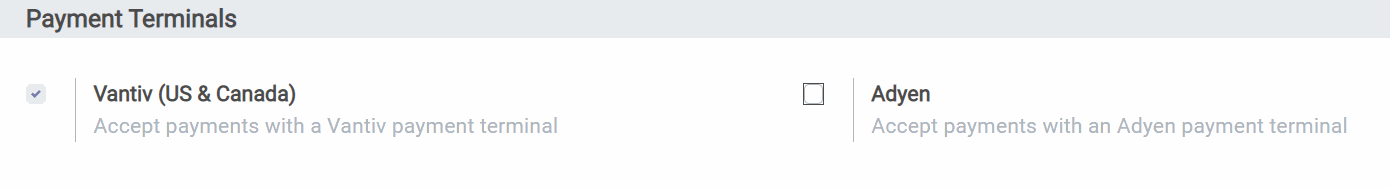

First, go in the general settings of the POS app, activate the Vantiv setting and Save.

media/vantiv_01.png

Back in `Point of Sale --> Configuration --> Point of Sale`, go to the payments section and access your Payment methods.

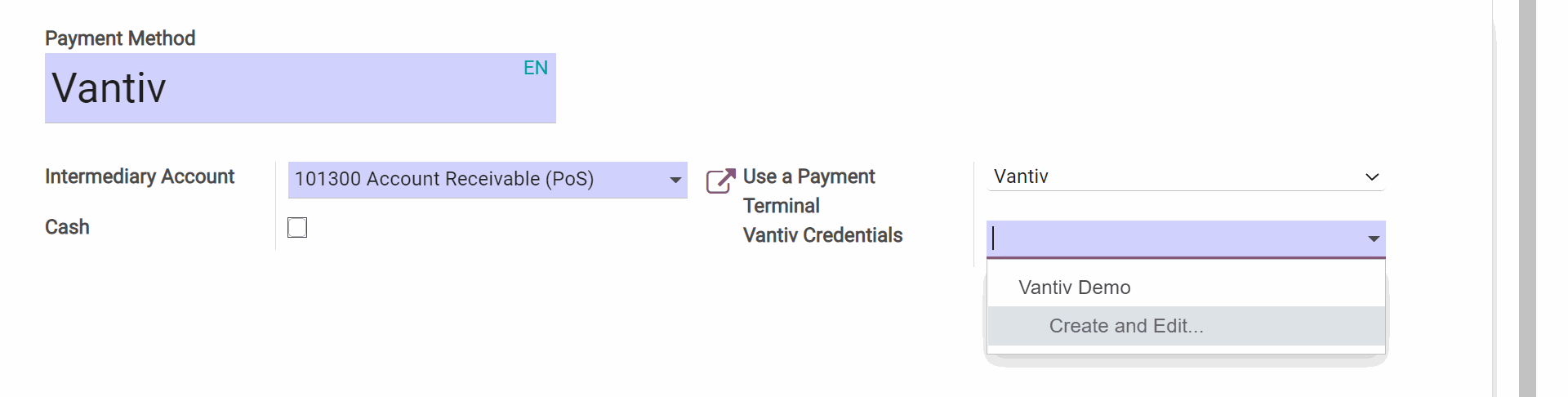

Create a new payment method for Vantiv, select the payment terminal option Vantiv, and create new Vantiv credentials.

media/vantiv_02.png

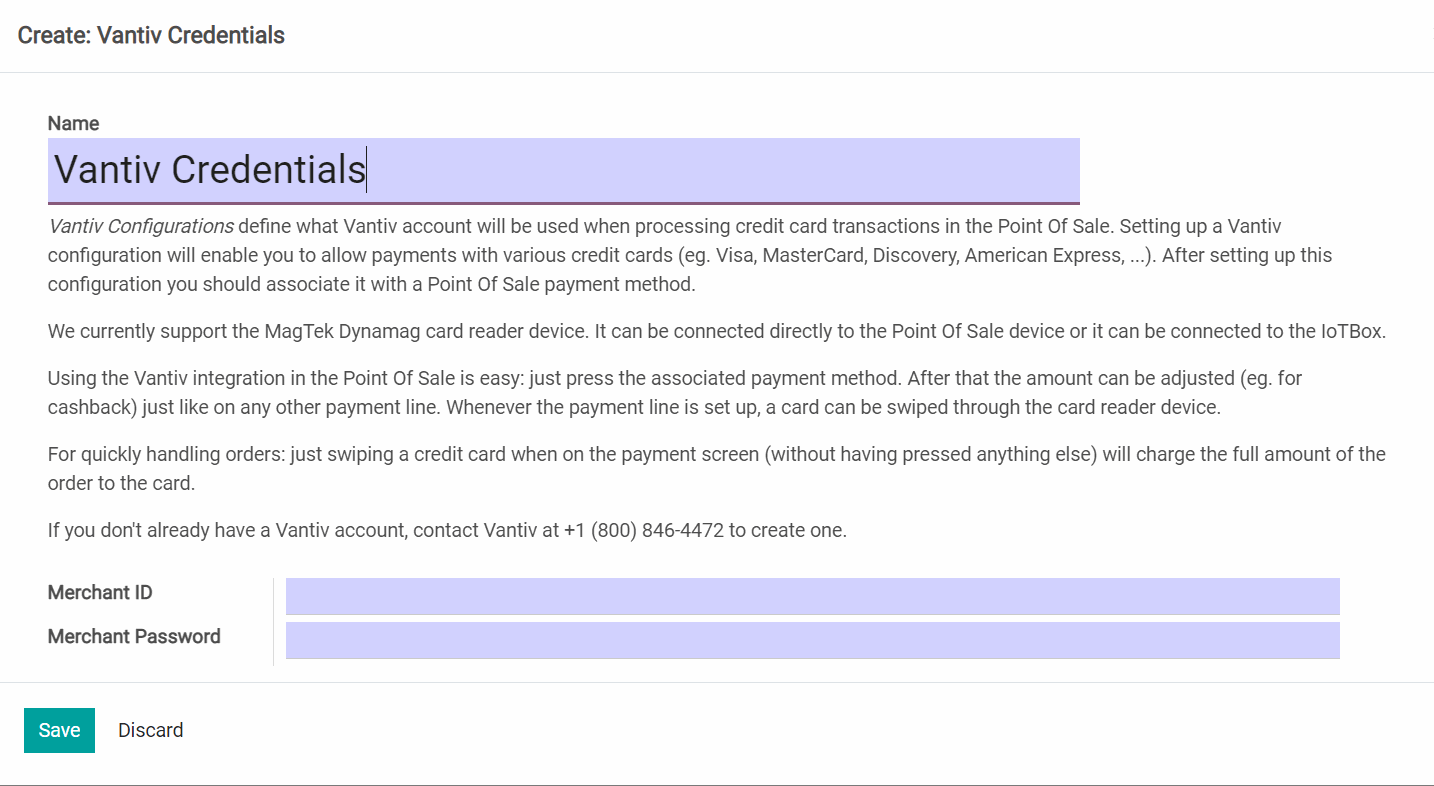

To create new Vantiv credentials, fill in your merchant ID and password, then save. Make sure the credentials you just created are selected, then save the payment method.

media/vantiv_03.png

Pay with a Payment Terminal

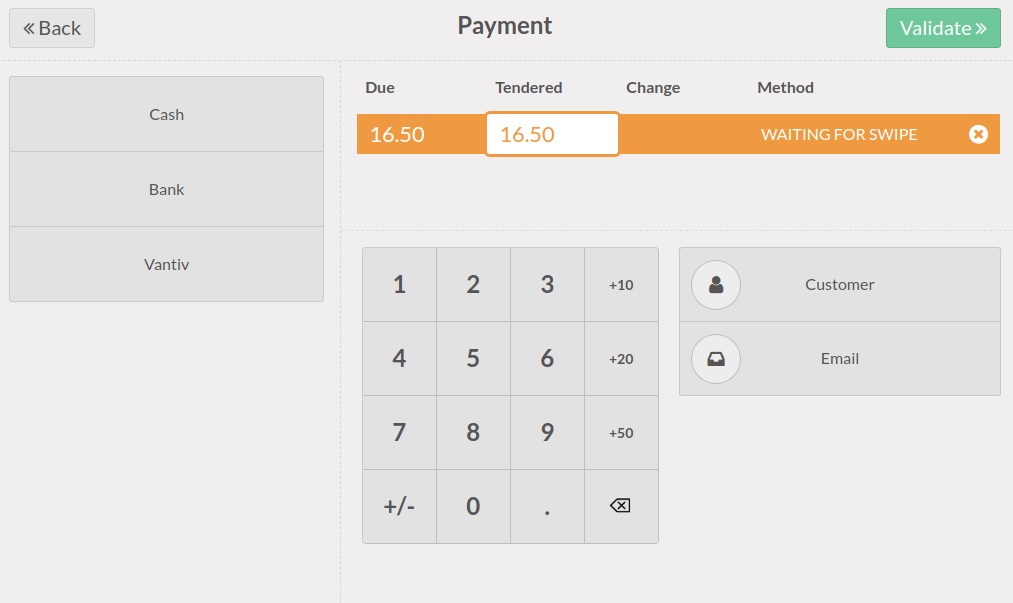

In your PoS interface, at the moment of the payment, select your Vantiv payment method and… that’s all.

media/vantiv_04.png
