David Tran Point of Sale Published: 12/16/20 Hits: 64

Connecting a SIX payment terminal allows you to offer a fluid payment flow to your customers and ease the work of your cashiers.

Warning

Even though Worldline has recently acquired SIX Payment Services and both companies use Yomani payment terminals, the firmware they run is different. Terminals received from Worldline are therefore not compatible with this integration.

Configuration

Configure the Payment Method

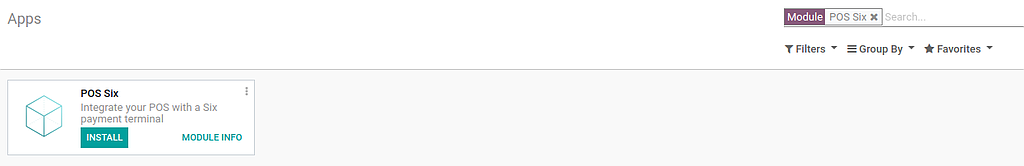

First, make sure that the POS Six module is installed. For this, go to Apps, remove the "Apps" filter and search for "POS Six".

media/six_01.png

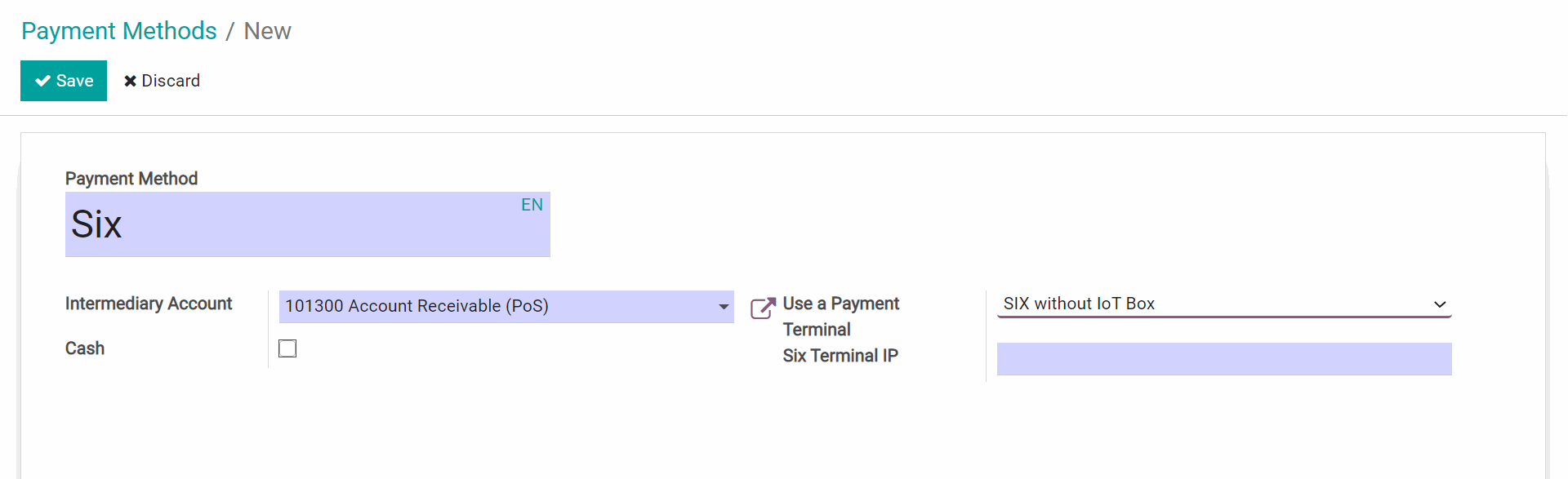

Back in `Point of Sale --> Configuration --> Payment Methods`, Create a new payment method for SIX, select the payment terminal option "SIX without IoT Box", and enter your payment terminal IP address.

media/six_02.png

Pay with a Payment Terminal

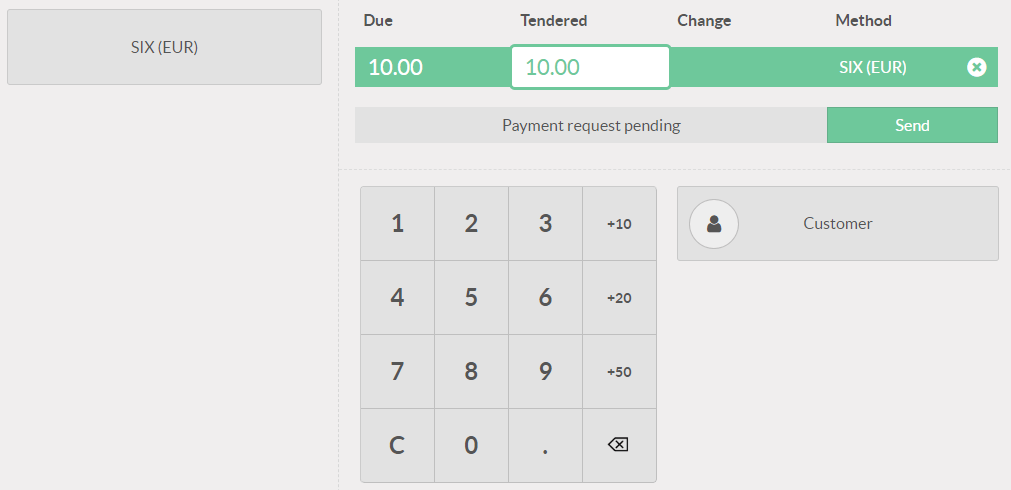

In your PoS interface, at the moment of the payment, select a payment method using a payment terminal. Verify that the amount in the tendered column is the one that has to be sent to the payment terminal and click on Send. If you want to cancel the payment request, click on cancel.

media/six_06.png

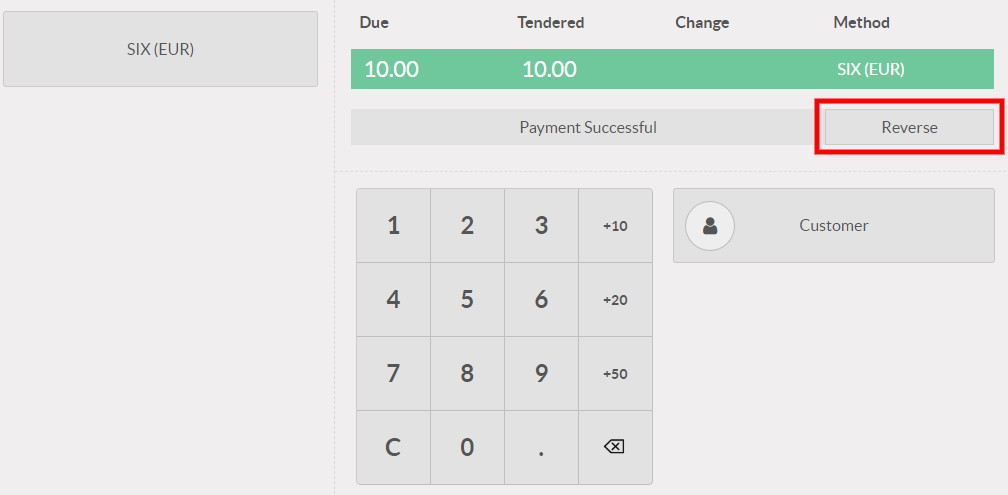

When the payment is done, the status will change to Payment Successful. You can always reverse the last transaction by clicking on Reverse.

media/six_07.png

If there is any issue with the payment terminal, you can still force the payment using the Force Done. This will allow you to validate the order in Odoo even if the connexion between the terminal and Odoo encounters issues.
